Description

Stock Bore Worm and Worm Gears are mechanical transmission devices widely used in various industrial and consumer equipment. This gear system consists of a worm gear and a worm wheel, typically used to achieve high reduction ratios and torque output. The main feature of worm gears is their spiral threads, which enable them to achieve large reduction ratios in a small space.



They are commonly used in application scenarios that require high-speed to low-speed conversion, such as industrial machinery, heavy equipment, and some consumer electronics products. In addition, due to their self-locking characteristics, these gears have also been widely used in certain positioning devices. The efficient torque transmission and compact design enable it to provide excellent performance in a limited space, and the self-locking function increases the reliability of the system, especially in applications that require precise position control. Multiple pressure angles and tooth numbers are available to meet the needs of different application scenarios.



In summary, Stock Bore Worm and Worm Gears play an important role in various types of mechanical equipment due to their efficient and reliable performance. These gear systems provide reliable solutions for both industrial production and everyday consumer electronic devices.

Parameter

Product range

Standards Series Type Size Range
ANSI 141/2°,4DP WG420 to WG464
14 1/2°,6DP WG620 to WG672
14 1/2°,8DP WG820 to WG880
14 1/2°,10DP WG1020 to WG1080
14 1/2°,12DP WG1220 to WG12100
14 1/2°,16DP WG1620 to WG1650
DIN Type1 Mod.1.0-2.5,40mm
Type1 Mod.1.0-3.0,50mm
Type1 Mod.1.0-3.15,63mm
Type2 Mod.1.25 -4.0,80mm
Type2 Mod.1.6-5.0,100mm
Type2 Mod.2.0-6.3,125mm

 ANSI

Worm and Worm Gears  141/2 ° Pressure Angle 3DP
stock bore worm and worm gears594-2

3DP 2''Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG318 18 6.00 1 3 11/2 16.2 CWE.CSP
WG324 24 8.00 11/2 31/2 11/2 22.8 CSP
WG330 30 10.00 11/2 31/2 11/2 30.2 CSP
WG336 36 12.00 11/2 31/2 11/2 36.4 CSP
WG354 54 18.00 11/2 4 11/2 60.2 CSP

W3-S
stock bore worm and worm gears594-3



Worm and Worm Gears  141/2 ° Pressure Angle 4DP

stock bore worm and worm gears594-4



4DP  1 1/2''Face

Part  Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Style
WG420 20 5.00 1 21/2 11/4 8.4 CWE,CSP
WG424 24 6.00 1 21/2 11/4 12.9 CWE,CSP
WG432 32 8.00 11/4 3 11/4 15.6 CWE,CSP
WG440 40 10.00 11/4 3 11/4 27.5 CWE,CSP
WG448 48 12.00 11/2 4 11/4 34.1 CWE,CSP
WG464 64 16.00 11/2 4 11/4 43.9 CSP



W4-S

stock bore worm and worm gears594-5



Worm and Worm Gears  141/2 ° Pressure Angle 6DP

stock bore worm and worm gears594-6

   6DP 1'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG620 20 3.333 3/4 17/8 7/8 2.5 CWE,CSP
WG624 24 4.000 3/4 17/8 7/8 3.6 CWE,CSP
WG630 30 5.000 7/8 21/4 7/8 5.0 CWE,CSP
WG636 36 6.000 1 21/2 7/8 6.0 CWE,CSP
WG640 40 6.667 1 21/2 7/8 7.6 CWE.CSP
WG648 48 8.000 11/4 23/4 1 9.2 CWE,CSP
WG660 60 10.000 11/4 3 11/4 13.7 CWE,CSP
WG672 72 12.000 11/4 3 11/4 14.9 CWE,CSP

W6-S

stock bore worm and worm gears594-7

6DP 1'' Face

Patr Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Style
WG620D 20 3.333 1 23/4 1 3.3 CPL
WG624D 24 4.000 11/4 23/4 1 4.1 CPL
WG630D 30 5.000 11/4 23/4 1 5.2 CWE,CSP
WG640D 40 6.667 11/4 23/4 1 7.6 CWE,CSP

W6-D

stock bore worm and worm gears594-8

6DP 1'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG620Q 20 3.333 1 23/4 1 3.4 CPL
WG624Q 24 4.000 11/4 23/4 1 4.1 CPL



W6-Q

stock bore worm and worm gears594-9

Worm and Worm Gears  141/2 ° Pressure Angle 8DP

stock bore worm and worm gears594-10

8DP 3/4'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG820 20 2.500 3/4 13/4 3/4 1.3 CPL
WG830 30 3.750 3/4 13/4 3/4 2.4 CPL
WG840 40 5.000 1 23/8 7/8 3.7 CWE.CSP
WG848 48 6.000 1 23/8 7/8 4.5 CWE.CSP
WG850 50 6.250 1 23/8 7/8 5.1 CWE.CSP
WG860 60 7.500 1 21/2 7/8 6.1 CWE.CSP
WG880 80 10.000 11/4 3 7/8 8.9 CWE.CSP

W8-S

stock bore worm and worm gears594-11

8DP 3/4'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Style
WG820D 20 2.500 1 2 3/4 1.2 CPL
WG830D 30 3.750 - 21/4 3/4 2.5 CPL,CSP
WG840D 40 5.000 - 21/4 3/4 3.4 CWE,CSP

 W8-D

stock bore worm and worm gears594-12

8DP 3/4'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Style
WG820Q 20 2.500 1 2 3/4 1.2 CPL
WG830Q 30 3.750 1 21/4 3/4 2.5 CPL,CSP

  W8-Q

stock bore worm and worm gears594-13

Worm and Worm Gears  141/2 ° Pressure Angle 10DP

stock bore worm and worm gears594-14

10DP 5/8'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Style
WG1020 20 2.00 1/2 11/4 3/4 0.7 CPL
WG1030 30 3.00 5/8 13/4 3/4 1.5 CPL
WG1040 40 4.00 5/8 13/4 3/4 1.8 CWE,CSP
WG1050 50 5.00 3/4 2 3/4 2.8 CWE,CSP
WG1060 60 6.00 3/4 2 3/4 3.6 CWE,CSP
WG1080 80 8.00 3/4 2 3/4 4.8 CWE,CSP
WG1080 100 10.00 3/4 2 3/4 6.0 CWE,CSP



W10-S

stock bore worm and worm gears594-15



10DP 5/8'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG1020D 20 2.00 7/8 15/8 5/8 0.65 CPL
WG1030D 30 3.00 7/8 13/4 5/8 1.3 CPL,CS
WG1040D 40 4.00 7/8 13/4 5/8 1.6 CWE ,CS
WG1050D 50 5.00 7/8 2 1 2.9 CWE, CS
WG1060D 60 6.00 7/8 2 1 3.0 CWE,CS

W10-D

stock bore worm and worm gears594-16

Worm and Worm Gears  141/2 ° Pressure Angle 10DP

10DP 5/8'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Style
WG1020Q 20 2.00 7/8 15/8 5/8 0.64 CPL
WG1030Q 30 3.00 7/8 13/4 5/8 1.3 CPL,CSP
WG1040 40 4.00 7/8 13/4 5/8 1.6 CWE,CSP

W10-Q

stock bore worm and worm gears594-17

Worm and Worm Gears  141/2 ° Pressure Angle 12DP

stock bore worm and worm gears594-18

12DP 1/2'' Face



Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG1220 20 1 .660 1/2 11/4 5/8 0.35 CPL
WG1230 30 2.500 1/2 11/4 5/8 0.71 CPL,CSP
WG1240 40 3.333 5/8 11/2 3/4 1.2 CPL,CSP
WG1250 50 4.166 5/8 11/2 3/4 1.5 CWE,CSP
WG1260 60 5.000 5/8 13/4 3/4 2.0 CWE,CSP
WG1280 80 6.666 5/8 21/2 3/4 3.9 CWE,CSP
WG12100 100 8.333 3/4 2 3/4 4.4 CWE,CSP

W12-S

stock bore worm and worm gears594-19



12DP 1/2'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG1220D 20 1.666 1/2 11/4 1/2 0.32 CPL
WG1230D 30 2.500 3/4 11/2 5/8 0.78 CPL
WG1240D 40 3.333 3/4 13/4 5/8 1.3 CPL,CSP



W12-D

stock bore worm and worm gears594-20

12DP 1/2'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Styl
WG1220Q 20 1 .666 1/2 11/4 1/2 0.32 CP
WG1230Q 30 2.500 3/4 11/2 5/8 0.38 CP
WG1240 40 3.333 3/4 13/4 5/8 0.80 CPL,C

W12-Q

stock bore worm and worm gears594-21

Worm and Worm Gears  141/2 ° Pressure Angle 16DP

stock bore worm and worm gears594-22



16DP 5/16'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt
Lbs 		Style
WG1620 20 1.250 1/4 5/8 5/16 0.13 CPL
WG1630 30 1.875 5/16 3/4 3/8 0.28 CPL,CSP
WG1640 40 2.500 5/16 3/4 3/8 0.42 CPL,CSP
WG1650 50 3.125 3/8 7/8 7/16 0.50 CPL,CSP

W16-S

stock bore worm and worm gears594-23

16DP 5/6'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG1620D 20 1.250 1/4 5/8 5/16 0.14 CPL

W16-D

stock bore worm and worm gears594-24

16DP 5/16'' Face

Part Number Z PD Bore Hub Dia Hub Depth wt Lbs Style
WG1620 20 1.25 1/4 5/8 5/16 0.14 CPL

W16-Q

stock bore worm and worm gears594-25

DIN

stock bore worm and worm gears594-26

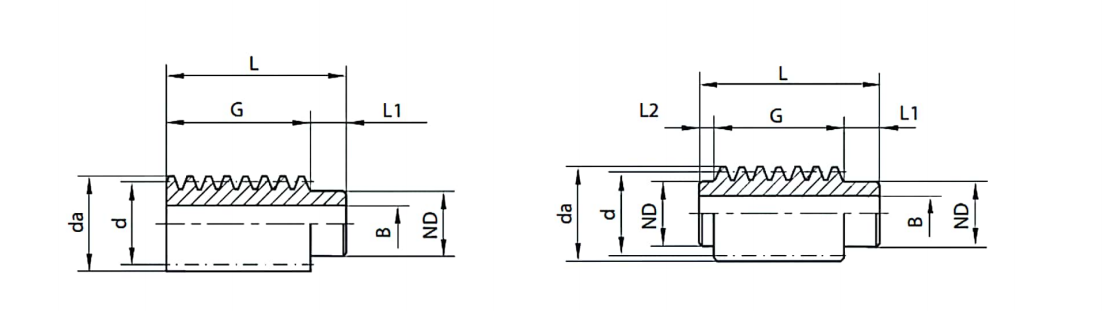

Module Type d da ND L1 L2 G L B kg
1.0 1 14 16 11 6 - 24 30 6 0.12
1.5 1 25 28 21 10 - 40 50 8 0.16
2.0 1 32 36 25 10 - 45 55 8 0.30
3.0 2 38 44 30 12 3 46 61 15 0.40
4.0 2 50 58 40 15 4 62 81 20 1.20
5.0 2 62 72 50 18 5 80 103 25 1.80
6.0 2 80 92 65 20 20 80 120 25 3.60



stock bore worm and worm gears594-27



Module Type d da ND NL1 G NL2 L kg
1.0 1 14 16 10 30 24 2 74 0.06
1.5 1 25 28 20 40 40 30 110 0.30
2.0 1 32 36 25 50 45 36 131 0.62
3.0 2 38 44 30 130 46 90 266 1.60
4.0 2 50 58 40 175 62 120 357 3.80
5.0 2 62 72 50 220 80 150 450 7.60
6.0 2 80 92 65 220 80 150 450 12.80

stock bore worm and worm gears594-28

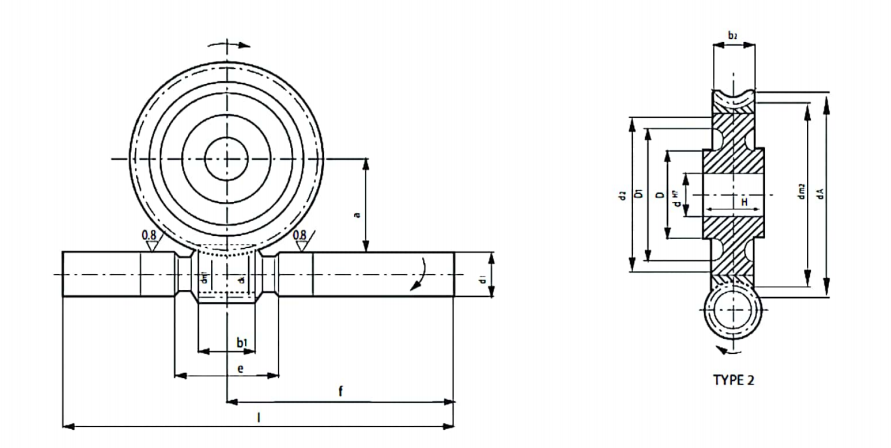

Centre distance a=40mm          Type1

Module i Z1 Worm Z2 Worm gear kg
dm1 dk1 d1 b1 e f i dm2 dA b2 H D D1 dH7
1.0 62:1 1 18.0 20 17.5 2.5 50 100 150 62 62.0 65.0 12 25 40 - 15 0.69
1.25 50:1 1 17.5 20 17.5 25 50 100 150 50 62.5 66.3 12 25 40 - 15 0.69
1.50 41:1 1 17.0 20 17.5 25 50 100 150 41 63.0 67.5 12 25 40 - 15 0.68
20.5:1 2 17.0 20 17.5 25 50 100 150 41 63.0 67.5 12 25 40 - 15 0.68
20 29:1 1 20.0 24 17.5 28 50 100 150 29 60.0 66.0 14 25 40 - 15 0.71
15:1 2 16.0 20 17.5 25 50 100 150 30 64.0 70.0 14 25 40 - 15 1.72
6.75:1 4 16.0 20 17.5 25 50 100 150 27 64.0 70.0 14 25 40 - 15 0.72
2.5 12:1 2 19.5  24 5 17.5 30 50 400 150 24 60.5 68.0 16 25 40 - 15 0.73

  Centre distance a=50mm          Type1

Module i Z1 Worm Z2 Worm gear kg
  dm1 dk1 d1 b1 e f i   dm2 dA b2 H D D1 dH7
1.0 82:1 1 17.0 19.0 17.5 25 50 115 180 82 83.0 86.0 12 30 50 61.0 20 1.00
1.25 62:1 1 23.4 24.9 20.5 25 50 115 180 62 77.6 81.0 15 30 50 - 20 1.20
1.5 52:1 1 21.0 24.0 20.5 28 60 115 180 52 29.0 83.5 14 30 50 66.0 20 1.20
26:1 2 21.0 24.0 20.5 28 60 115 180 52 79.3 82.4 14 30 50 66.0 20 1.20
2.0 38:1 1 22.4 26.4 20.5 32 60 115 180 38 77.6 84.0 18 30 50 71.5 20 1.20
19:1 2 22.4 26.4 20.5 32 60 115 180 38 77.6 84.0 18 30 50 71.5 20 1.20
9:1 4 22.4 26.4 20.5 32 60 115 180 36 27.6 84.0 18 30 50 71.5 20 1.15
2.5 29:1 1 26.5 31.5 20.5 36 60 115 180 39 73.5 81.0 20 30 50 - 20 1.30
14:1 2 26.5 31.5 20.5 36 60 115 180 28 73.5 81.0 20 30 50 - 20 1.30
6.75:1 4 26.5 31.5 20.5 36 60 115 180 27 73.5 81.0 20 30 50 - 20 1.45
3.0 12:1 2 25.5 31.5 20.5 387 60 115 180 24 74.5 83.5 18 30 50 71.5 20 1.30

stock bore worm and worm gears594-29

Centre distance a=63mm         Type1

Module i Z1 Worm z2 Worm gear Kg
dm1 dk1 d1 b1 e f i dm2 dA b2 H D D1 dH7
1.0 109:1 1 17.0 19.0 20.5 28 60 130 210 109 109.0 112 13 35 60 91 25 1.70
1.25 82:1 1 22.4 24.9 20.5 28 60 130 210 82 103.0 109 15 35 60 87 25 1.65
1.6 61:1 1 28.0 31.2 25.5 32 60 120 210 61 98.0 103 18 35 60 83 25 2.05
2.0 51:1 1 27.4 26.4 25.5 36 75 130 210 51 103.6 110 18 35 60 86 25 2.10
25.5:1 2 22.4 26.4 25.5 36 75 130 210 51 103.6 110 18 35 60 86 25 2.10
12.25:1 4 22.4 26.4 25.5 36 75 130 210 49 103.6 110 18 35 60 86 25 2.00
2.5 39:1 1 26.5 31.5 25.5 40 75 130 210 39 995 107 20 35 60 81 25 2.20
19.5:1 2 26.5 31.5 25.5 40 75 130 210 39 99.5 107 20 35 60 81 25 2.15
9.25:1 4 26.5 31.5 25.5 40 75 130 210 37 99.5 107 20 35 60 81 25 2.20
3.15 29:1 1 335 39.8 25.5 45 75 130 210 29 92.5 102 26 35 60 79 25 2.30
14.5:1 2 33.5 39.8 28.5 45 75 130 210 29 92.5 102 26 35 60 79 25 2.30
6.75:1 4 335 39.8 25.5 45 75 130 210 27 925 102 26 35 60 79 25 2.30

  Centre distance a=80mm          Type2

Module i Z1 Worm Z2 Worm gear kg
 dm1 dk1 d1 b1 e f i  dm2 dA b2 H dx D D1 dH7
1.25 109:1 1 22.4 24.9 25.5 34 70 170 270 109 137.6 141 16 119 50 70 95 30 3.15
1.6 82:1 1 28.0 31.2 30.5 38 80 170 270 82 132.0 137 20 110 50 70 87 30 3.80
2.0 62:1 1 35.5 396.5 30.5 40 80 170 270 62 124.5 131 22 104 50 70 85 30 3.90
2.5 53:1 1 26.5 31.5 30.5 46 95 170 270 53 133.5 141 22 109 50 70 87 30 3.80
26:1 2 26.5 31.5 30.5 46 95 170 270 52 133.5 141 22 109 50 70 87 30 3.85
12.25:1 4 26.5 31.5 30.5 46 95 170 270 49 133.5 141 32 109 50 70 87 30 3.95
3.15 40:1 1 33.5 39.8 30.5 50 95 170 270 40 126.5 136 26 100 50 70 80 30 4.10
19.5:1 2 33.5 39.8 30.5 50 95 170 270 39 126.5 136 26 100 50 70 80 30 4.15
9.25:1 4 33.5 39.8 30.5 50 95 170 270 37 126.5 136 26 100 50 70 80 30 4.25
4.0 29:1 1 40.0 48.0 30.5 55 95 170 270 29 120.0 132 32 89 50 70 - 30 4.45
14.5:1 2 40.0 48.0 30.5 55 95 170 270 29 120.0 132 32 89 50 70 - 30 4.45
6.75:1 4 40.0 48.0 30.5 55 95 170 270 27 120.0 132 32 89 50 70 - 30 4.50



stock bore worm and worm gears594-30

Centre distance a=100mm          Type2

Module i Z1 Worm z2 Worm gear kg
dm1 dk1 d1 b1 e f i dm2 dA b2 dx H D D1 dH7
1.6 107:1 1 28.0 31.2 30.5 42 90 22.5 35 107 172.0 177 20 152 60 85 128 40 6.10
2.0 82:1 1 35.5 39.5 40.5 46 90 225 350 82 164.5 171 24 142 60 85 118 40 17.40
2.5 62:1 1 42.5 47.5 40.5 50 90 225 350 62 157.5 165 28 134 60 85 112 40 7.6
3.15 52:1 1 33.5 39.8 40.5 58 110 225 350 52 166.5 176 26 140 60 85 115 40 7.7
36:1 2 33.5 39.8 40.5 58 110 225 350 52 166.5 176 26 140 60 85 115 40 7.5
12.25 4 33.5 39.8 40.5 58 110 225 350 49 166.5 176 26 140 60 85 115 40 7.60
4.0 39:1 1 40.0 48.0 40.5 64 110 225 350 39 160.0 172 32 128 60 85 - 40 8.3
19.5:1 2 40.0 48.0 40.5 64 110 225 350 39 160.0 172 32 128 60 85 - 40 8.3
9.25:1 4 40.0 48.0 40.5 64 110 225 350 37 160.0 172 32 128 60 85 - 40 8.3
5.0 29:1 1 50.0 60.0 40.5 70 110 225 350 29 150.0 165 38 112 60 85 - 40 9.10
14.5:1 2 50.0 60.0 40.5 70 110 225 350 29 150.0 165 38 112 60 85 - 40 9.10
675:1 4 50.0 60.0 40.5 70 110 225 350 27 150.0 165 38 112 60 85 - 40 9.00

  Centre distance a=125mm          Type2

Module i Z1 Worm Z2 Worm gear kg
dm1 dk1 d1 b1 e f i dm2 dA b2 dx H D D1 dH7
2.0 107:1 1 35.5 39.5 40.5 52 105 255 410 107 214.5 221 24 192 70 105 168 50 4.9
2.5 82:1 1 42.5 475 45.5 58 105 255 410 82 207.5 215 28 184 70 105 160 50 13.0
3.15 62:1 53.0 59.3 50.5 64.0 105 255 410 62 197.0 207 34 70 169 70 105 145 50 14.60
4.0 52:1 2 40.0 48.0 50.5 75 135 205 410 52 210.0 222 32 179 70 105 155 50 14.2
25.5:1 3 40.0 48.0 50.5 75 135 255 410 51 210.0 222 32 179 70 105 155 50 14.5
12:1 4 40.0 48.0 50.5 75 135 275 410 48 210.0 222 32 179 70 105 155 50 14.5
5.0 39:1 1 50.0 60.0 50.5 82 135 255 410 39 200.0 215 38 160 70 105 136 50 15.5
19.5:1 2 50.0 60.0 50.5 82 135 255 410 39 200.0 215 38 160 70 105 136 50 13.7
9:1 4 50.0 60.0 50.5 82 135 255 410 36 200.0 215 38 160 70 105 136 50 15.5
6.3 29:1 1 63.0 75.6 50.5 85 135 255 410 29 187.0 206 50 142 70 105 117 50 17.7
14.5:1 2 63.0 75.6 50.5 85 135 255 410 29 187.0 206 50 142 70 105 117 50 17.6
6.75:1 4 63.0 75.6 50.5 85 135 255 410 27 187.0 206 142 142 70 105 117 50 18.0

stock bore worm and worm gears594-31



Module Z Type dp da ND N
N1/N2 		L G C a BH7 Kg
1.0
b=6.5 		16 1 16:1 16 18.8 12 8 145 - - 15 5 0.02
18 1 18:1 18 20.8 12 8 145 - - 16 5 0.02
20 1 20:1 20 22.8 16 8 145 - - 17 5 0.03
25 1 25:1 25 27.8 16 8 145 - - 19.5 5 0.04
35 1 35:1 35 37.8 16 10 16.5 - - 24.5 6 0.07
50 1 50:1 50 52.8 20 10 16.5 - - 32 6 0.14
75 1 75:1 75 77.8 30 10 16.5 - 4.5 44.5 6 0.20
100 1 100:1 100 102.8 30 12 185 - 1.5 57 6 0.48
125 1 125:1 125 127.8 40 12 18.5 - 4.5 69.5 8 058
150 1 150:1 150 152.8 40 12 18.5 - 4.5 82 8 0.59
1.5
b=12 		16 2 16:1 24 28.4 18 6 24 - - 24.5 8 0.06
18 2 18:1 27 31.7 20 8 28 - - 26 8 0.08
20 2 20:1 30 34.7 25 8 28 - - 27.5 10 0.13
30 2 30:1 45 49.7 30 8 28 - - 35 10 026
40 2 40:1 60 64.7 30 10 32 - - 42.5 10 0.40
50 2 50:1 75 79.7 30 10 32 - 10 50 10 0.44
75 2 75:1 112.5 117.2 40 10 32 - 10 68.75 12 0.86
100 2 100:1 150 154.7 45 10 32 - 10 87.5 12 130
2.0
b=14 		16 2 16:1 32 37.6 20 8 30 - - 32 8 0.14
18 2 18:1 36 41.6 25 8 30 - - 34 10 0.25
20 2 20:1 40 45.6 30 10 34 - - 36 12 0.55
30 2 30:1 60 65.6 40 10 34 - - 46 12 0.60
40 2 40:1 80 85.6 40 10 34 - 11 56 12 0.65
50 2 50:1 100 105.6 40 10 34 - 11 66 12 0.76
60 2 60:1 120 125.6 50 10 34 - 11 126 12 1.20
3.0
b=24 		16 3 16:1 48 57 40 18/14 46 - - 43 15 0.46
18 3 18:1 54 63 40 18/14 46 - - 46 15 0.55
20 3 20:1 60 69 40 18/14 46 - - 49 15 0.64
26 3 26:1 78 87 45 18/14 46 60 12 58 18 1.20
32 3 32:1 96 105 50 18/14 46 70 12 67 20 1.40
40 3 40:1 120 129 65 18/14 46 90 12 79 25 2.20
52 3 52:1 147 156 75 23/4 51 110 12 97 30 3.40
65 3 65:1 195 204 85 23/4 51 150 12 116.5 35 4.90
4.0
b=34 		16 3 16:1 64 76 50 21/5 60 - - 57 20 1.00
18 3 18:1 72 84 50 21/5 60 - - 67 20 1.50
20 3 20:1 80 92 50 21/5 60 - - 65 20 1.60
26 3 26:1 104 116 55 21/5 60 80 14 77 22 2.10
32 3 32:1 128 140 65 21/5 60 90 14 89 25 3.40
40 3 40:1 160 172 75 21/5 60 125 14 105 30 4.50
52 3 52:1 208 220 85 26/5 65 175 14 129 35 6.70
65 3 65:1 260 272 100 26/5 65 225 14 155 40 950
5.0
b=40 		16 3 16:1 80 95 70 27/5 72 - - 71 20 2.30
18 3 18:1 90 105 70 27/5 72 - - 76 20 2.60
20 3 20:1 100 115 70 27/5 72 - - 81 25 3.00
26 3 26:1 130 145 70 27/5 72 99 16 96 28 420
32 3 32:1 160 175 75 27/5 72 125 16 111 30 5.30
40 3 40:1 200 215 85 27/5 72 160 16 131 35 7.40
52 3 52:1 260 275 100 32/5 77 220 16 161 40 11.80
65 3 65:1 325 340 115 32/5 77 280 16 193.5 45 17.00
6.0
b=40 		16 3 16:1 96 114 70 20/5 65 - - 88 25 4.90
18 3 18:1 108 126 70 20/5 65 - - 94 25 5.85
20 3 20:1 120 138 75 20/5 65 - - 100 25 7.11
25 3 25:1 150 168 75 25/5 70 120 16 115 30 8.95
30 3 30:1 180 198 80 25/5 70 140 16 130 30 12.70
40 3 40:1 240 258 85 30/5 75 200 16 160 30 17.85
50 3 50:1 300 318 90 30/5 75 260 16 190 30 26.31
60 3 60:1 360 378 90 30/5 75 320 16 220 30 39.70

Get a Free Quote

Our representative will contact you soon.
Email
Name
Whatsapp/Phone
Company Name
Message
0/1000

Copyright © Hangzhou Ocean Industry Co., Ltd. All Rights Reserved

Privacy Policy

stock bore worm and worm gears594-41E-mail stock bore worm and worm gears594-42Tel stock bore worm and worm gears594-43 WeChat
stock bore worm and worm gears594-44
 stock bore worm and worm gears594-45
