Description

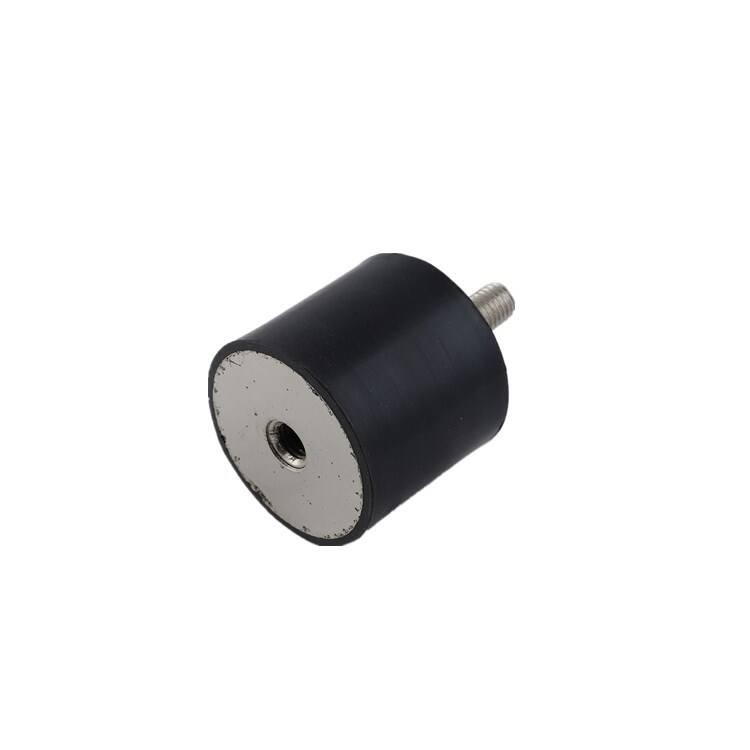

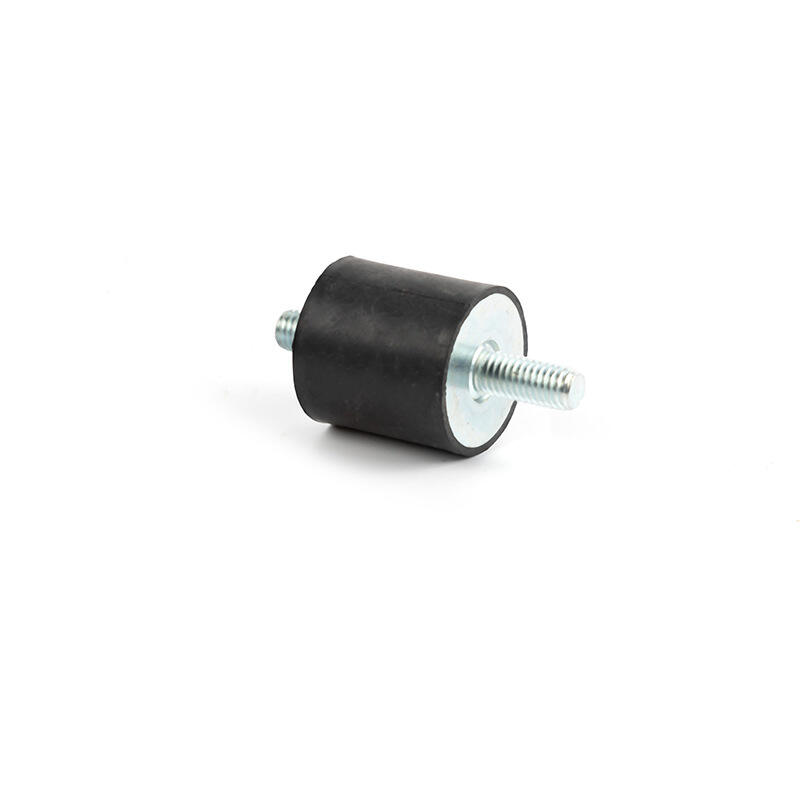

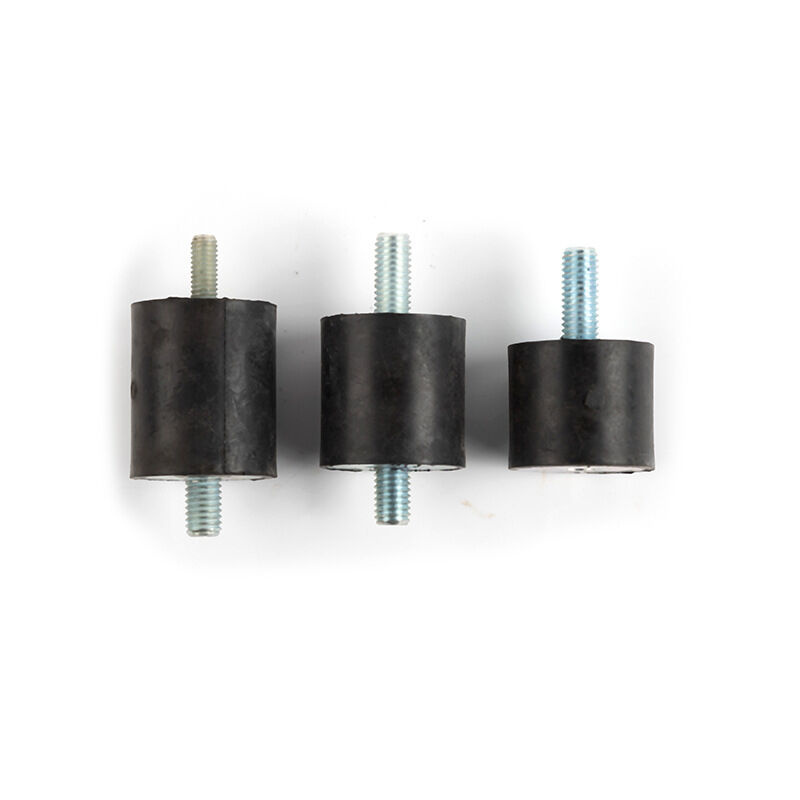

This product has models such as VD, DD, and VE, with grade A. It is in the shape of a cylinder and made of rubber composite material. It is suitable for shock absorption of various power machinery. The structure is simple and economical. There are multiple installation methods. It has obvious shock absorption and noise reduction effects. The materials include various types of rubber. In terms of performance, it has a high design breaking strength. It has multiple advantages such as aging resistance. It is environmentally friendly and non-toxic, in line with EU RoHS specifications. The after-sales service includes factory certificate, quality inspection report, quality assurance, and product warranty. In the remarks, "Dan" is equal to 1 kilogram.

Parameter

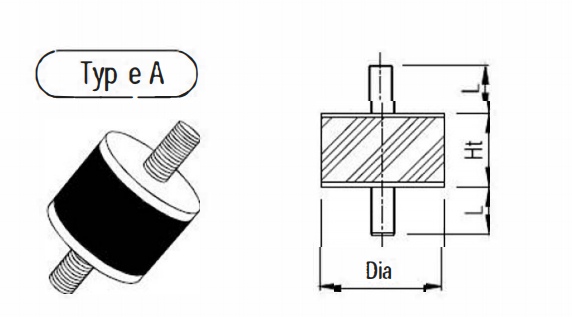

Dimensions Dia/Ht (mm)	Screw Thread Size ×L(mm)	Special Screw Thread Sizes (mm)
6/6 6/7	M3×7 M3×6
8/6 8/8	M3×6 M3×6
9/12	M4×6
10/8 10/10 10/15	M4×10 M4×10 M4×10	M3×5,M5×5 M5×10,M6×15
12/24	M4×12
13/26	M4×10
15/6 15/8 15/10 15/15 15/20 15/25 15/28 15/30	M4×13 M4×13 M4×13 M4×13 M4×13 M4×13 M4×13 M4×13	M4×6,M4×8 M4×10,M4×15 M5×15
18/8.5	M6×16	M6×10
20/10 20/15 20/20 20/25 20/30	M6×15 M6×15 M6×15 M6×15 M6×15	M5×15,M6×8 M6×10,M6×12 M6×18,M6×20
25/10 25/15 25/20 25/25 25/30	M6×18 M6×18 M6×18 M6×18 M6×18	M6×8,M6×10 M6×12,M6×15 M6×20
30/15 30/20 30/25 30/30 30/40 30/50	M8×20 M8×20 M8×20 M8×20 M8×20 M8×20	M8×8,M8×10 M8×13,M8×16 M8×18,M8×23 M8×27,M10×25
40/20 40/30 40/40 40/66	M8×23 M8×23 M8×23 M8×23	M8×12,M8×13 M8×16,M8×28 M10×20

Dimensions Dia/Ht (mm)	Screw Thread Size×L(mm)	Special Screw Thread Sizes (mm)
50/20 50/25 50/30 50/35 50/40 50/45 50/50 50/55	M10×28 M10×28 M10×28 M10×28 M10×28 M10×28 M10×28 M10×28	M8×23,M10×15 M10×20,M10×33 M12×27
60/35 60/40 60/45	M10×28 M10×28 M10×28	M8×23,M10×15 M10×20,M10×33 M12×27
70/35 70/45	M10×30 M10×30	M10×25
75/25 75/40 75/45 75/50 75/55 75/60	M12×37 M12×37 M12×37 M12×37 M12 ×37 M12×37	M12×27,M12×32
80/66	M12×37
90/50 90/55	M14×33 M14×33	M14×30
100/30 100/40 100/50 100/55 100/60 100/75 100/100	M16×45 M16×45 M16×45 M16×45 M16×45 M16×45 M16×45	M12×27,M16×37
125/55 125/60	M16×45 M16×45
150/55 150/60 150/75 150/100	M16×45 M16×45 M16×45 M16×45	M20×45
160/75	M16×45
200/100	M20×45

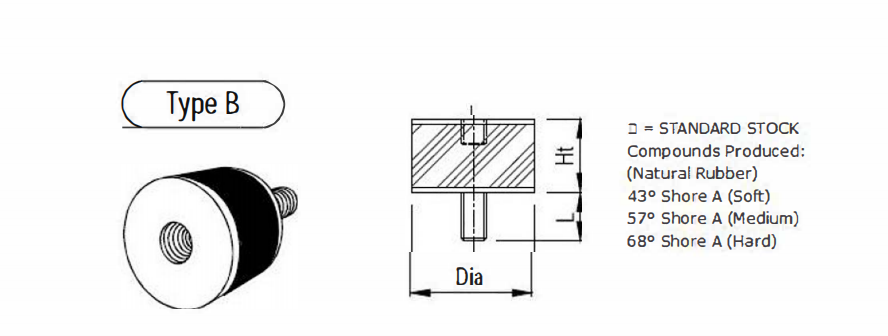

Dimensions Dia/Ht (mm)	Screw Thread Size×L(mm)	Special Screw Thread Sizes (mm)
6/6 6/7	M3×6 M3×6
8/6 8/8	M3×6 M3×6
9/12	M3×6
10/10 10/15	M4×10 M4×10	M3×5,M5×5 M5×10
12/24	M4×12
13/26	M4×10	M4×12
15/10 15/15 15/20 15/25 15/28 15/30	M4×13 M4×13 M4×13 M4×13 M4×13 M4×13	M4×6,M4×8 M4×10,M4×15 M5×15
20/15 20/20 20/25 20/30	M6×15 M6×15 M6×15 M6×15	M5×15,M6×8 M6×10,M6×12 M6×18,M6×20
25/15 25/20 25/25 25/30	M6×18 M6×18 M6×18 M6×18	M6×8,M6×10 M6×12,M6×15 M6×20
30/15 30/20 30/25 30/30 30/40 30/50	M8×20 M8×20 M8×20 M8×20 M8×20 M8×20	M8×8,M8×10 M8×13,M8×16 M8×18,M8×23 M8×27





40/20 40/30 40/40 40/66	M8×23 M8×23 M8×23 M8×23	M8×12,M8×13 M8×16,M8×28 M10×20

Dimensions Dia/Ht (mm)	Screw Thread Size×L(mm)	Special Screw Thread Sizes (mm)
50/20 50/25 50/30 50/35 50/40 50/45 50/50 50/55	M10×28 M10×28 M10×28 M10×28 M10×28 M10×28 M10×28 M10×28	M8×23,M10×15 M10×20,M10×33 M12×27
60/35 60/40 60/45	M10×28 M10×28 M10×28	M10×15,M10×20 M10×33
70/35 70/45	M10×30 M10×30	M10×25
75/25 75/40 75/45 75/50 75/55 75/60	M12×37 M12×37 M12×37 M12×37 M12×37 M12×37	M12×27,M12×32
80/66	M12×37	M12×27
90/50 50/55	M14×33 M14×33
100/30 100/40 100/50 100/55 100/60 100/75 100/100	M16×45 M16×45 M16×45 M16×45 M16×45 M16×45 M16×45	M12×27,M12×37
125/55 125/60	M16×45 M16×45
150/55 150/60 150/75 150/100	M16×45 M16×45 M16×45 M16×45	M20×45
160/75	M16×45
200/100	M20×45

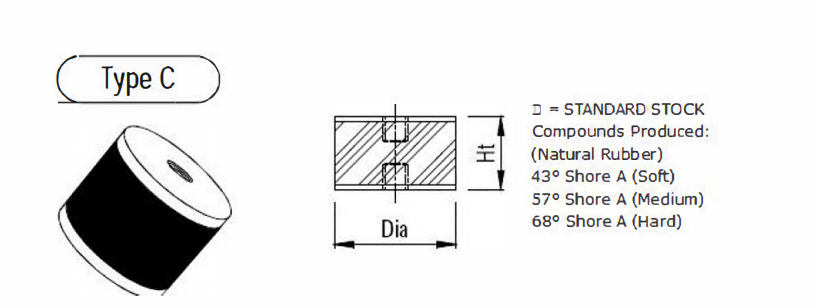

Dimensions Dia/Ht (mm)	Screw Thread Size×L(mm)	Special Screw Thread Sizes (mm)
8/8	M3
9/12	M4
10/10 10/15	M4 M4	M3
12/24	M4
13/26	M4
15/15 15/20 15/25 15/28 15/30	M4 M4 M4 M4 M4	M5




20/20 20/25 20/30	M6 M6 M6	M5


25/20 25/25 25/30	M6 M6 M6
30/20 30/25 30/30 30/40 30/50	M8 M8 M8 M8 M8
40/30 40/40 40/66	M8 M8 M8	M10


50/30 50/35 50/40 50/45 50/50 50/55	M10 M10 M10 M10 M10 M10	M8,M12




60/35 60/40 60/45	M10 M10 M10

Dimensions Dia/Ht (mm)	Screw Thread Size×L(mm)	Special Screw Thread Sizes (mm)
70/35 70/45	M10 M10	M12,M16
75/40 75/45 75/50 75/55 75/60	M12 M12 M12 M12 M12	M16
80/66	M12
90/50 90/55	M14 M14
100/40 100/50 100/55 100/60 100/75 100/100	M16 M16 M16 M16 M16 M16	M12
125/55 125/60	M16 M16	M20
150/55 150/60 150/75 150/100	M16 M16 M16 M16	M20
160/75	M16
200/100	M20	M16
